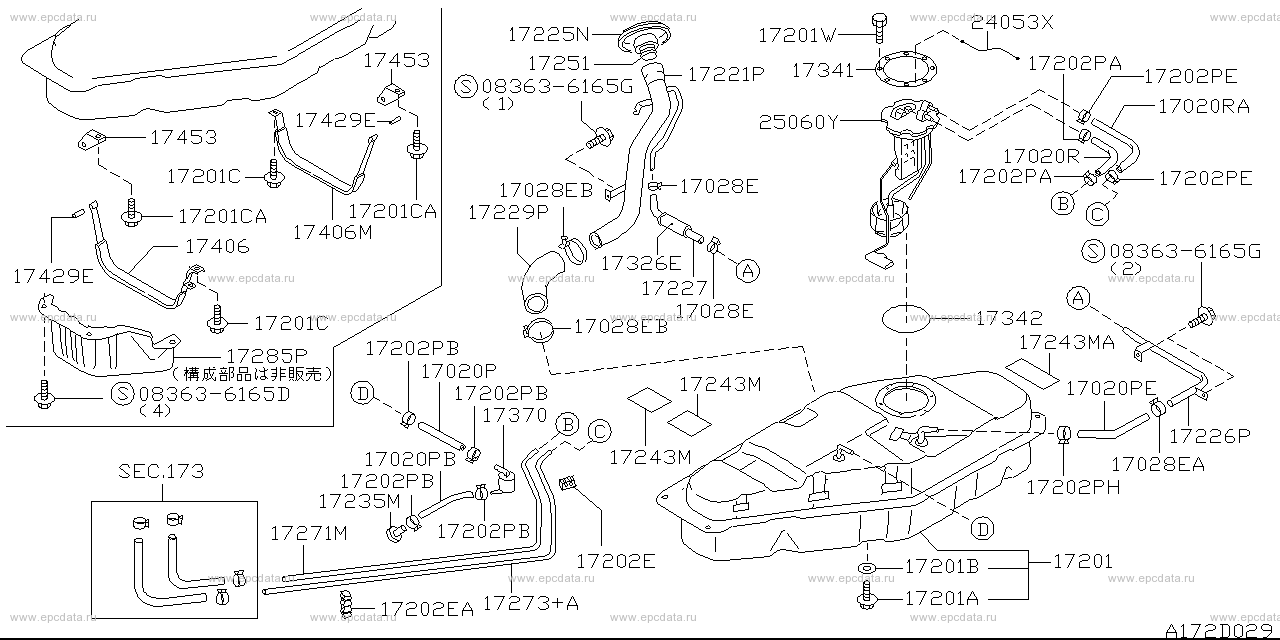

172 - fuel tank (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
2WD.CD20T	05.1994 - 01.1997

Open full screen picture Up to the top

083636165D 083636165G 17020P - tube, vinyl flexible 17020PB - tube, vinyl flexible 17020PE - tube, vinyl flexible 17020R - hose, fuel 17020RA - hose, fuel 17028E - clamp 17028EA - clamp 17028EB - clamp 17201 - tank assembly, fuel 17201A - plug, drain 17201B - packing, drain plug 17201C - bolt 17201CA - bolt 17201W - screw 17202E - clip 17202EA - clip 17202PA - clamp 17202PB - clamp 17202PE - clamp 17202PH - clamp 17221P - tube assembly, filler 17225N - grommet, filler neck 17226P - tube, ventilation 17227 - hose, ventilation 17229P - hose, filler 17235M - connector, breather 17243M - shim, fuel tank 17243MA - shim, fuel tank 17251 - cap assembly, filler 17271M - tube, fuel tank outlet 17273+A - tube, fuel tank return 17285P - protector, fuel tank 17326E - ｶﾗ- 17341 - retainer, fuel luggage 17342 - seal,O ring fuel gauge 17370 - valve assembly, check 17406 - band assembly, fuel tank mounting 17406M - band assembly, fuel tank mounting 17429E - pin, fuel tank mounting 17453 - bracket, fuel tank mounting rear 24053X - harness, fuel gauge tank 25060Y - sender unit, fuel gauge

---

Applies for models	Manufacture period	Spec
2WD.CD20ET	01.1997 - 01.1998
2WD.CD20ET	01.1998 - ...

Open full screen picture Up to the top

083636165D 083636165G 17020P - tube, vinyl flexible 17020PB - tube, vinyl flexible 17020PE - tube, vinyl flexible 17020R - hose, fuel 17020RA - hose, fuel 17028E - clamp 17028EA - clamp 17028EB - clamp 17201 - tank assembly, fuel 17201C - bolt 17201CA - bolt 17201W - screw 17202E - clip 17202PA - clamp 17202PE - clamp 17202PH - clamp 17221P - tube assembly, filler 17225N - grommet, filler neck 17226P - tube, ventilation 17227 - hose, ventilation 17229P - hose, filler 17235M - connector, breather 17243M - shim, fuel tank 17243MA - shim, fuel tank 17251 - cap assembly, filler 17271M - tube, fuel tank outlet 17273+A - tube, fuel tank return 17285P - protector, fuel tank 17326E - ｶﾗ- 17341 - retainer, fuel luggage 17342 - seal,O ring fuel gauge 17370 - valve assembly, check 17406 - band assembly, fuel tank mounting 17406M - band assembly, fuel tank mounting 17429E - pin, fuel tank mounting 17453 - bracket, fuel tank mounting rear 24053X - harness, fuel gauge tank 25060Y - sender unit, fuel gauge

Vanette Serena KVC23
